52M Concrete Boom Pump

52m concrete boom pump has been improved for the overseas market. The chassis is preferentially selected from Foton Daimler chassis, Isuzu chassis and HOWO chassis. The surging engine power and the advanced international design makes it have higher configuration and cost performance. At the same time, it has high reliability and fuel economy.

The laboratory life of structural parts reaches 400,000 square meters without cracking, basically reaching the same advanced level in Europe. Haomei Machinery has strict control of the whole process of raw material selection-cutting-rough machining-welding-processing-assembly.

Features of 52m Concrete Pump

1. Intelligent bionic 6RZ technology. The opening height of the arm frame is reduced by 6%, while the actual fabric height is increased by 15%, and the fabric range is increased by 20%.

2. High-efficiency and large-displacement technology. Through the scientific matching of pumping system, boom length and chassis, the maximum pumping volume is 180 m3/h, while the fuel consumption is reduced by 15-20%, and the life of wearing parts is increased by 20%.

3. The energy-saving intelligent control technology and intelligent temperature control energy-saving technology makes the fuel consumption reduced by 30%, which is 15% lower than the average level.

4. Multi-arm compound motion control, full-stroke control technology, flexible pumping control technology, and synchronous operation of unilateral outriggers greatly improve pumping efficiency.

5. Boom flexible control technology monitors the pumping status throughout the whole process to achieve smooth and shock-free concrete delivery.

6. Automatic anti-blocking control technology, anti-backflow technology ensures the smooth pumping process.

7. Boom emergency system, all working condition distribution dynamic adaptation system, intelligent temperature control and energy saving technology ensure the safety and energy saving of pumping

8. The key parts are original imported parts of world-class brands, and are manufactured with the most stringent and demanding production technology and testing process to ensure the high quality of each concrete pump truck.

Technical Parameter of 52 Meter Concrete Pump

Items

Unit

Models

HDT5420THB-52/5

HDT5420THB-52/5

Main

Parameters

Output in theory

m3/h

150

150

Index of the pump carry capacity

Mpa.m3/h

586

586

Theoretic pumping pressure

Mpa

8.5

8.5

Bucket volume

L

700

700

Height of top surface of bucket

mm

1400

1400

Model of dirstribution valve


S管阀

S管阀

Max. operation radius

m

47.8

47.8

Max. operation height

m

51.8

51.8

Max. operation depth

m

39.8

39.8

Open height of boom

mm

9400

9400

Distance between front landing legs

mm

10295

10295

Distance between rear landing legs

mm

10650

10650

Distance between front & rear landing legs

mm

10310

10310

Diameter of delivery pipe

mm

125

125

Length of hose pipe

m

3

3

Rotary range of boom


365°

365°

Quantity of boom


5

5

Rotary angle of each boom

°

90/180/180/180/270

90/180/180/180/270

Wire line control distance

m

33

33

Remote control distance

m

200

200

Driving state

Max. speed

km/h

80

89

Min. turn radius

mm

12500

12000

Brake distance

m

10

10

Approach angle

°

16

16

Departure angle

°

11

12

Chassis model


ZZ5437S5067C1

CYH51Y

Wheel base between the first & the second axle

mm

1800

1850

Wheel base between the second & the third axle

mm

5000

4605

Wheel base between the third & the fourth axle

mm

1350

1310

Front tread

mm

2022

2065

Rear tread

mm

1830

1850

Max. engine output power

kw

275(2100r/min)

287(2200r/min)

Max. engine output torque

n.m

1500(1100r/min)

1863 /(1100 r/min)

Max, gradient ability

%

37

30

Fuel consumption

L/100km

38

34

Out dimension(LWH)

mm

13990×2500×4000

13950×2490×4000

Total weight

kg

42000

41000

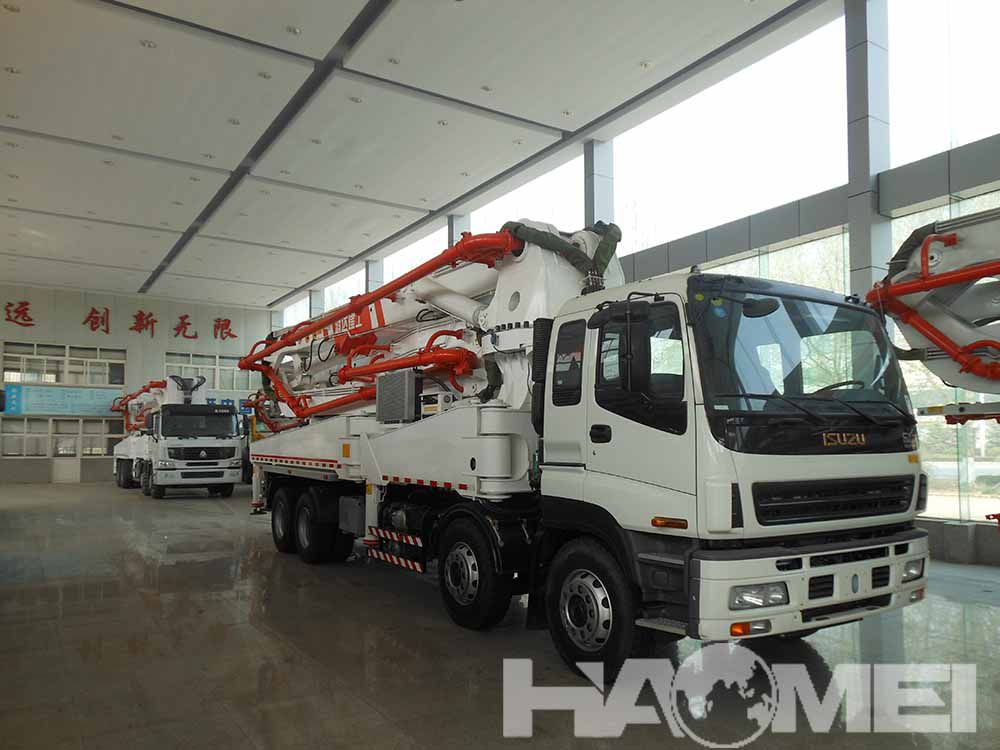

Product Show

52 Meter Concrete Pump.jpg

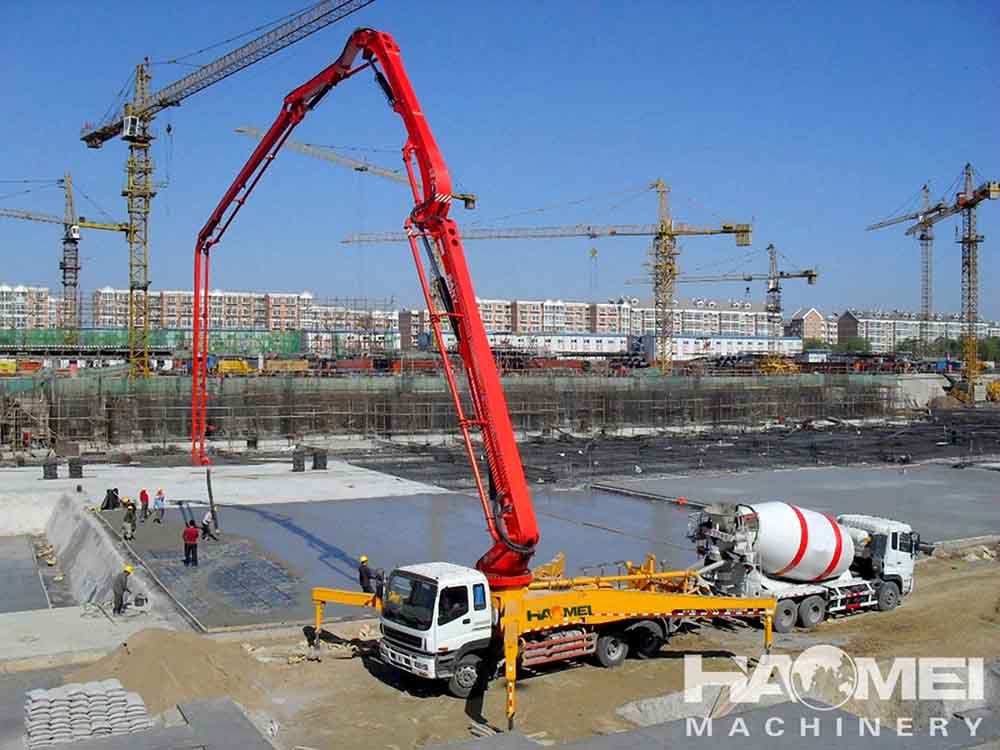

Construcion cases

52M Concrete Boom Pump.jpg

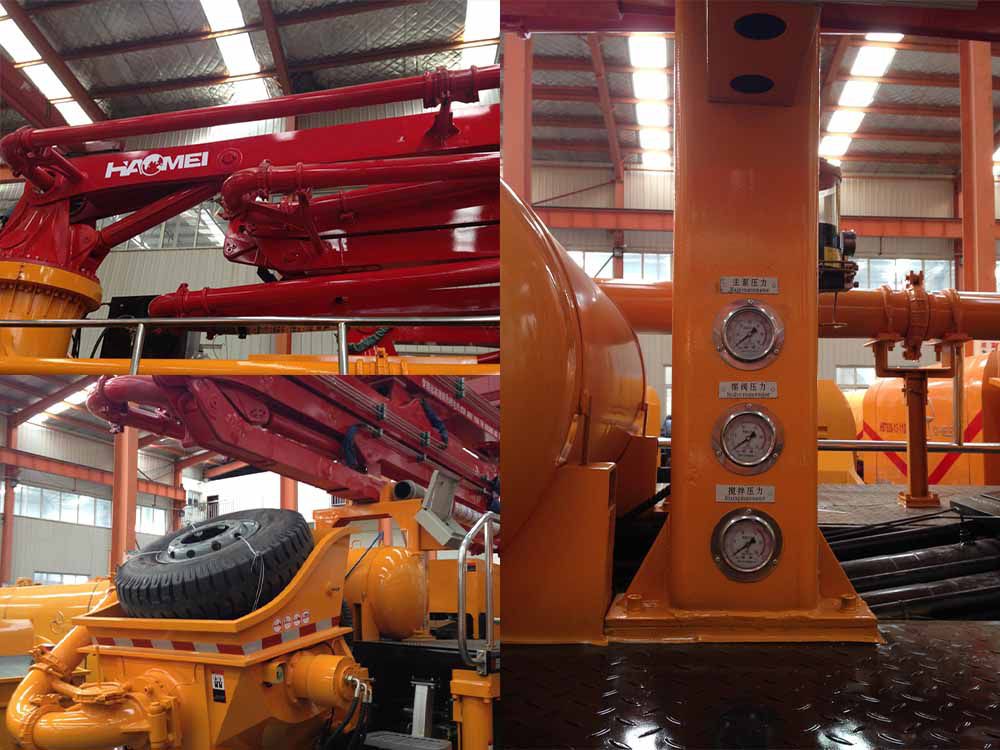

Equipment Details

parts of concrete pump truck.jpg
