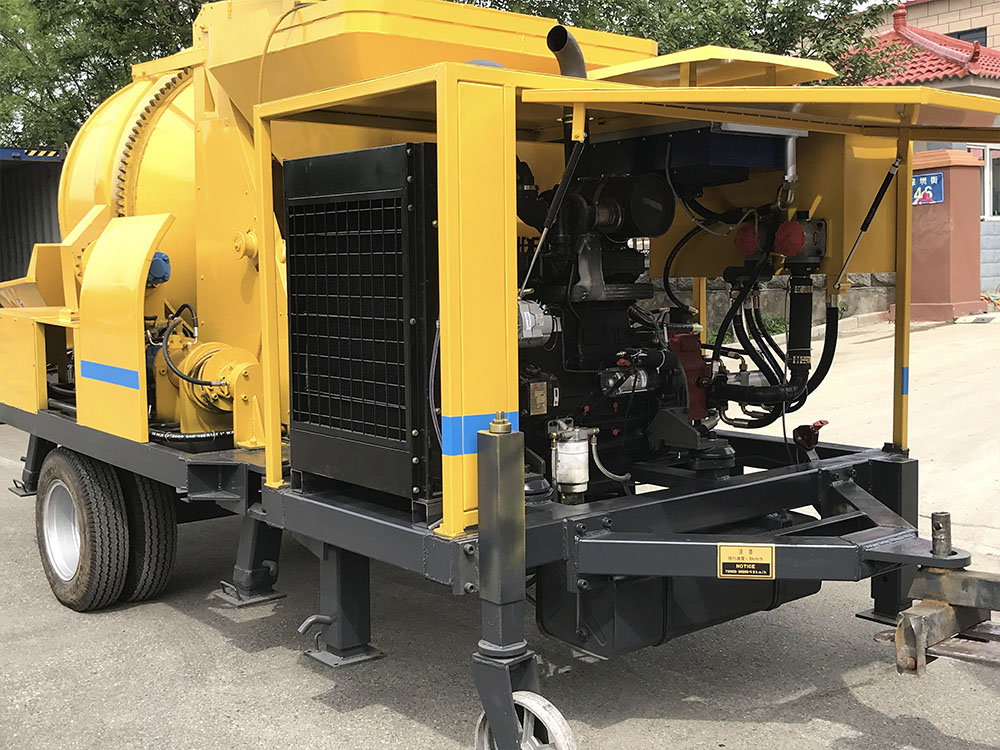

Main pumping system of mini concrete mixer with pump

Open-loop hydraulic circuit, Big fuel tank capacity, Good performance of heat transfer and low temperature of the system effectively protect the entire hydraulic system to work properly.

Distribution system of mini concrete pumps:

1.using the swing cylinder

2. using nested S-tube valve.

3. using special glasses plates of wear-resistant materials, cutting ring.

Mixing system of mini concrete pumps:

1. Using cycloid motor

2. Using super-resistant mixing blade shaft with pedal-style.

3. The hardness of left and right axle HB250-280 after quenched treatment. The thickness of the surface nitride is greater than 0.3mm, and the surface hardness is more than HB550.

Cooling and filtration devices of mini concrete pumps:

1. The filtration accuracy of main pump suction filter is 100μm, and the filtration accuracy of the gear pump suction filter is 80μm, and the filtration accuracy of return oil filter is 20μm.

2. Coolers from airline products are of reliable quality and good heat dissipation.

Hydraulic piping and valve of mini concrete pumps:

1. With good pressure resistance and anti-aging performance.

2. Using hydraulic control valve ,which is a unit of the hydraulic system to ensure long-term stability

Electronic control systems of mini concrete pumps:

1. It has the advantages of movement control accuracy, long life and low failure.

2.Using Schneider AC contactors and control buttons (contact).

3. Using Omron's integrated power supply and relay.

4.Using GSK proximity switches from Germany.

5.Using use NEC hydraulic table.

The data of cement mixer with pump

ItemUNITJBT40-8-45ES
Max Theoretical Concrete MixingM³/H15
Max Theoretical Concrete OutputM³/H40
Theoretical max transmission distanceMVertical 50/Horizontal 200
Distribution Valve Form
S valve
Hopper Volume*HeightLxMM600x1080
Pumping Motor PowerKW34or45
Winch Motor PowerKW5.5
Hydraulic Oil Form
open circuit
Rated SpeedRPM1480
Fuel Tank CapacityL170
Weightkgs3500
Concrete Delivery PressureMPA6
Concrete Cylinder Specification*StrokeMMφ180 * 800 or 200 * 800
Spout DiameterMMφ180
Mixing Motor PowerKW8OR4
Pump Motor PowerW550
Max Aggregate SizeMMGrait:40MM; Gravel:30MM
VoltageV380
Dimensions (L * W * H)MM3800x2100x3300
