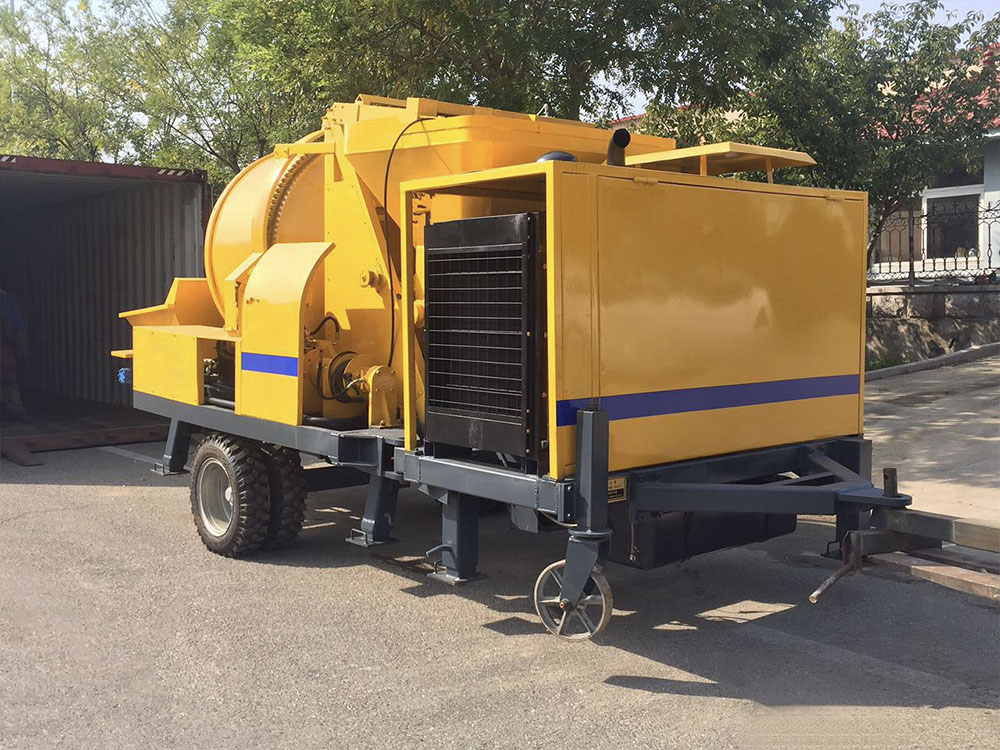

concrete mixer and pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
Concrete mixer and pump is a self-falling and movable concrete mixing machine, discharging with the double wimble rotating reversely. It could be used for mixing and damp-dry rigid concrete. This mixer drum will mix the material by rotating positively, and discharges by rotating reversely.
Item | Unite | Concrete mixer and pump |
charging capacity | L | 560 |
discharging capacity | L | 450 |
Main power (kw) | 11 | 18.5 |
Working pressure(Mka) | 15 | 20 |
Dimension(mm) | 1700*950*1350 | 1850*1000*1350 |
Weight (kg) | 420 | 450 |
