Boom pump trucks are self-contained units consisting of a truck and frame, and the pump itself.
concrete mixer pump trucks are used for concrete pours for everything from slabs and medium high-rise buildings, to large volume commercial and industrial projects. They range from single-axle truck mounted pumps used for their high maneuverability, suitability for confined areas, and cost/performance value, to huge, six-axle rigs used for their powerful pumps and long reach on high-rise and other large-scale projects.
Name | HDT5401THB-45/5 | |
output in theory | m3/h | 125 |
index of the pump carry capacity | Mpa.m3/h | 586 |
Theoretic pumping pressure | mpa | 8.5 |
bucket volume | L | 700 |
height of top surface of bucket | mm | 1400 |
model of distribution valve | S Valve | |
max. operation radius | m | 40.7 |
max. operation height | m | 44.7 |
max. operation depth | m | 31.3 |
open height of boom | mm | 8495 |
distance between front landing legs | mm | 9550 |
distance between front & rear landing legs | mm | 9190 |
diameter of delivery pipe | mm | 125 |
length of hose pipe | m | 3 |
quantity of boom | 5 | |
rotary angle of each boom | 91/180/180/180/270 | |
wire line control distance | m | 33 |
romote control distance | m | 200 |
max. speed | km/h | 80 |
min. turn radius | mm | 12100 |
brake distance | m | 10 |
approach angle | 16 | |
departure angle | 11 | |
(××)out dimension(L×W×H) | mm | 13300×2500×4000 |
total weight | kg | 40000 |
1.The power system is consisted by technical diesel engine or electrical engine.
2.It can drive the pumping system directly which samplized the linkage structure and improved the efficiency.
3.Strong power system reduced the rate of occuring faults;
4.The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly
quality fully guaranteed the function of electrical controlling system.
5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.

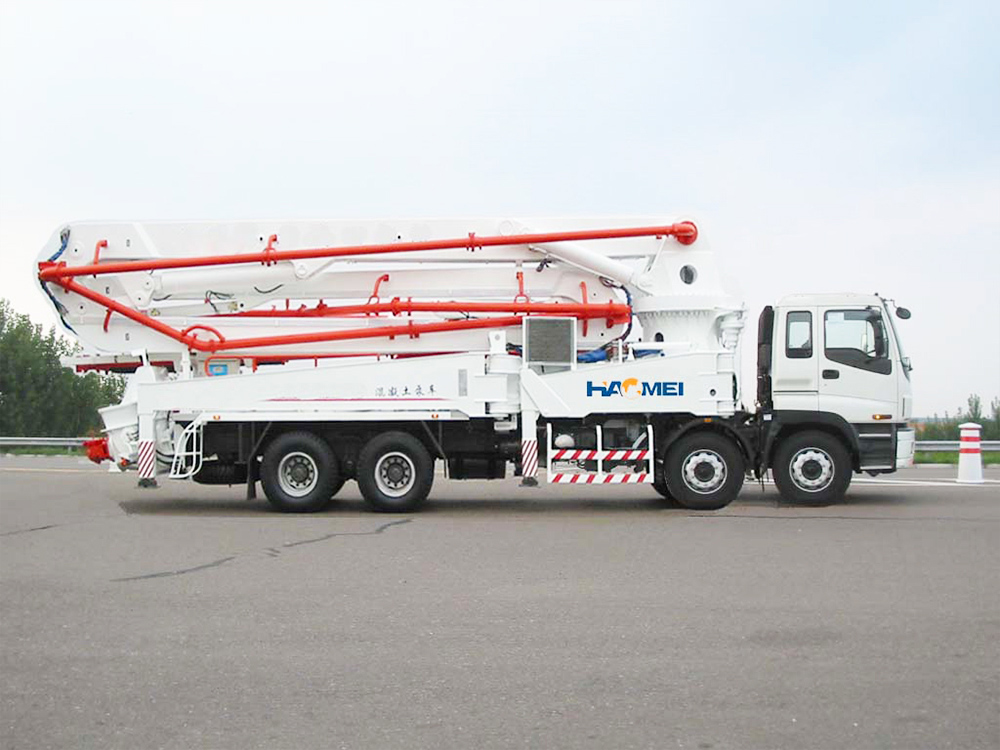

Booms for these HDT5401THB-45/5 Isuzu Concrete Pump Truck can come in configurations of three and four sections, with a low unfolding height of about 16 feet. This low unfolding height is ideal for placing concrete in confined areas. Longer, five-part booms can reach up or out more than 200 feet.
Because of their reach, boom concrete pump often remain in the same place for an entire pour. This allows ready mix trucks to discharge their loads directly into the pumps hopper at one central location and helps to create a more efficient jobsite traffic flow.
Most manufacturers offer a variety of options, from chassis and pump size, to boom configurations, remote control, and outrigger options.
