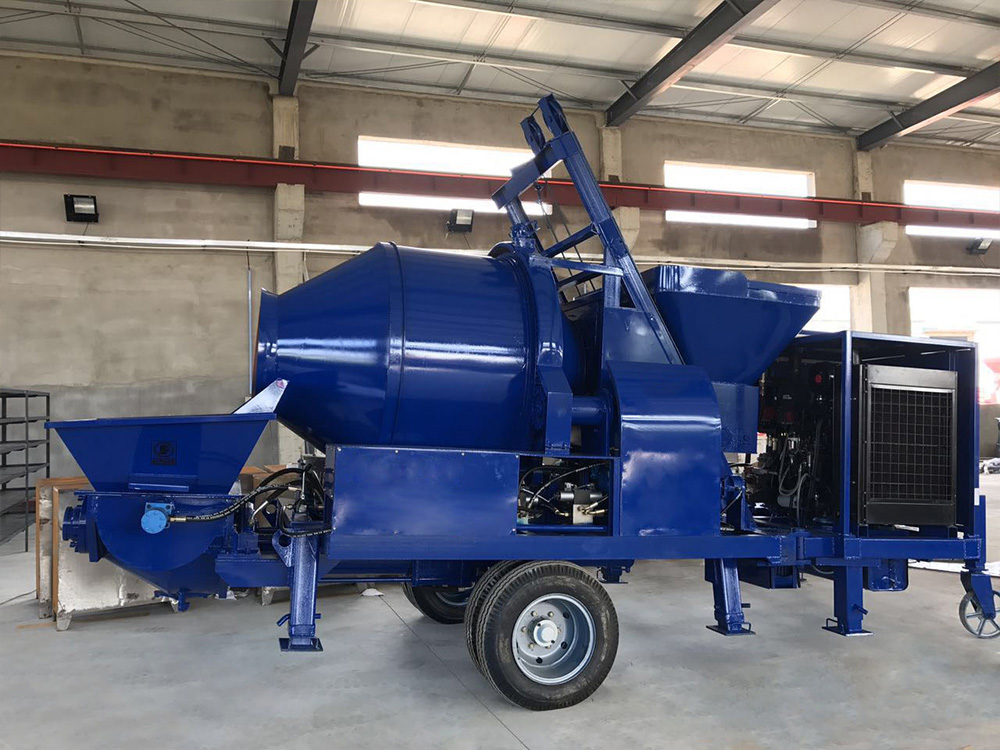

The concrete mixer and pump is a combination of mixing and pumping. The construction operating system is fully automated, integrating feeding, mixing and high pressure pumping. It is easy to operate and stable in performance. The capacity is 50m3/h.
1. The delivery pressure is high, which can meet the needs of 150-meter high-rise buildings and 600-meter long-distance transportation.
2. Low labor intensity: feeding, mixing and pumping are all mechanized.
3. High configuration and stable performance. The key components adopt well-known foreign brands, which can guarantee 24-hour continuous construction, and the service life of the equipment is as long as more than 10 years.
4. Efficient construction: The construction efficiency can reach 4 to 6 times that of fixed concrete mixers and concrete pumps, reducing construction cost and labor costs.
5. Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
6. Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
7. The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
8. The high-low pressure automatic switch of the concret mixer with pump machine reduces the trouble of dismantling and installing the oil pipe.
Parameter Type | Unit | Value |
Concrete output (theory) | m3/h | 50 |
Pumping pressure (theory) | Mpa | 9 |
Main motor power | kw | 45 |
Mixer Model | / | JSC500 |
Displacement of main oil pump | L | 112 |
Main oil cylinder model | mm | 100*1000 |
Delivery cylinder model | mm | 200*1000 |
Dimensions (length, width and height) | mm | 7220*2200*3250 |
Gross weight | kg | 11500 |
High /low voltage switch | / | Yes |
Pumping hopper volume | mm | 400 |
Pumping hopper feeding height | mm | 1500 |
